Adding tables to reports
Who is this article for?Administrators responsible for configuring reports.
Administration module access is required.
Tables are a great way to display large volumes of information in a clear and concise fashion.
This article shows you where you can add and customise tables within your reports.
1. Adding tables
To add a table:
- Access the Administration module.
- Select Customisation.
- Choose Messaging.
- Click the Edit button of the email you want to add fields to.

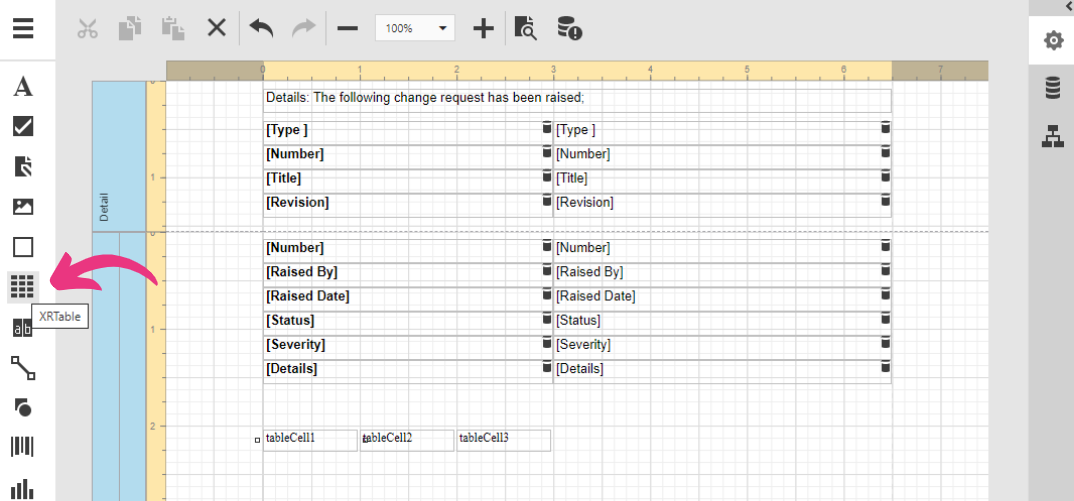

This will open Report Designer. - Drag and drop an XRTable onto the canvas.
- Highlight a cell.
- Open the Configuration menu.

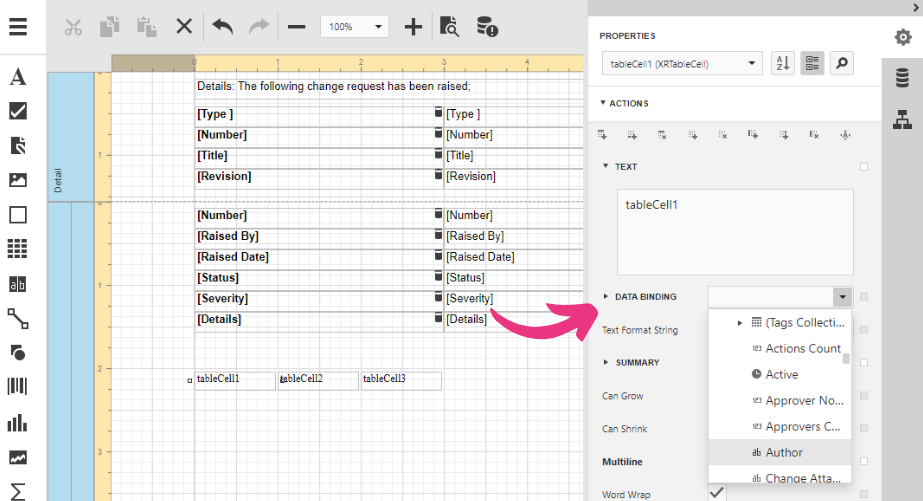

- Select a Data Binding option.

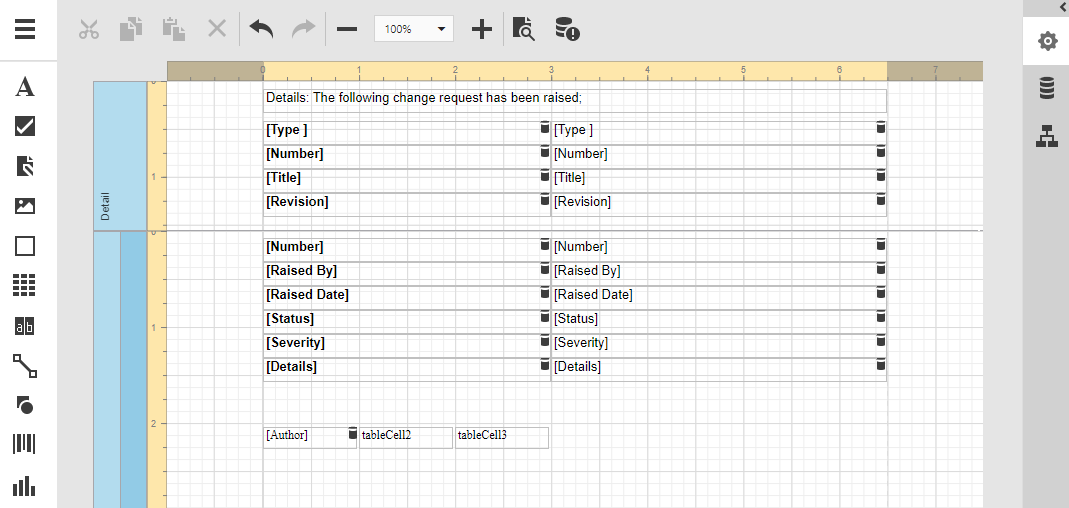

- Repeat the process for the remaining cells.
- Click Save (in navigation menu).

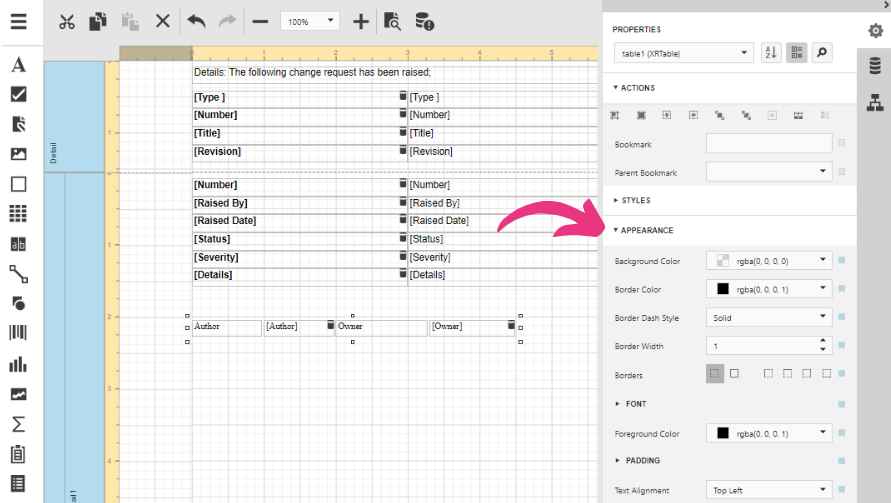

2. Customising tables
To customise the apperance:
- Highlight the table you need to style.
- Open the Configuration menu.
- Expand the Appearance section.
- Modify options as needed.
- Click Save (in navigation menu).
1. Adding tables
To add a table:
- Access the Administration module.
- Select Messaging (under Customisation).
- Right-click the email you want to add fields to.
- Click Edit.
- Click Edit... (next to Message body).

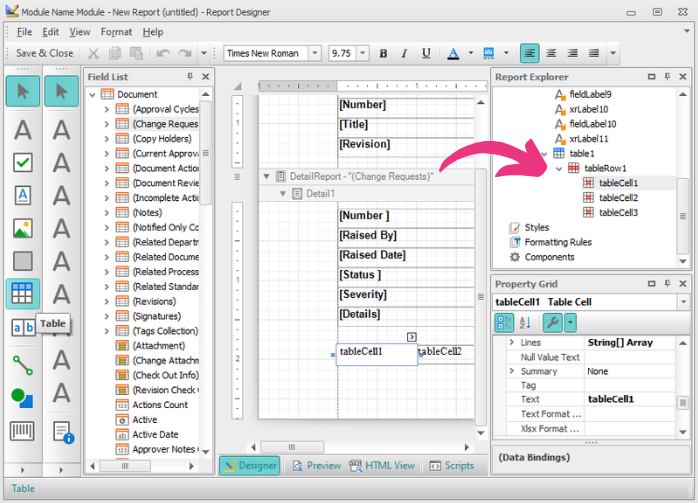

This will open Report Designer. - Drag and drop a Table onto the canvas.
- Highlight a cell.
- Scroll down in the Property Grid.

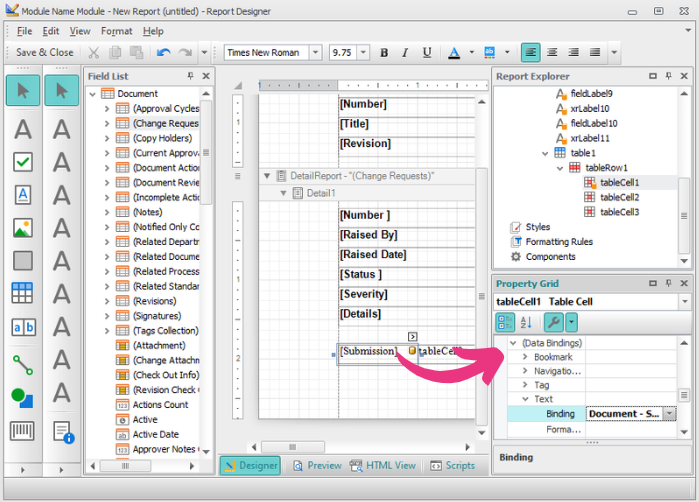

- Expand the Data Bindings section.
- Select a Data Binding option.
- Repeat the process for the remaining cells.
- Click Save & Close.

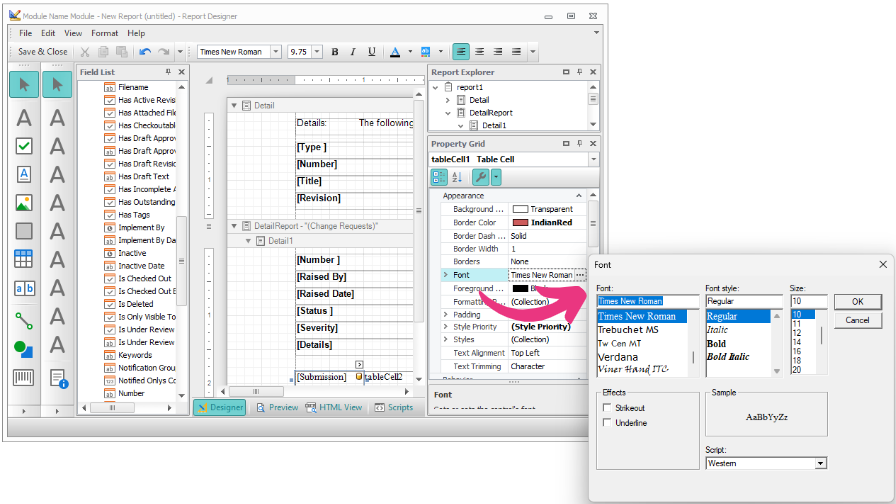

2. Customising tables
To customise the apperance:
- Highlight the table you need to style.
- Scroll down in the Property Grid.
- Expand the Appearance section.
- Modify options as needed.
- Click Save & Close.
