How to add CA/PA Stages and Actions to reports

Open Report Designer - either from the [File] menu and by clicking [Report Designer] or by clicking the [Design] button from the "Print" or "Print Preview" Windows.
In Report Designer, each section with repeating fields is called a "Detail Report". If there is not already a "Stages" Detail Report, you can add one:

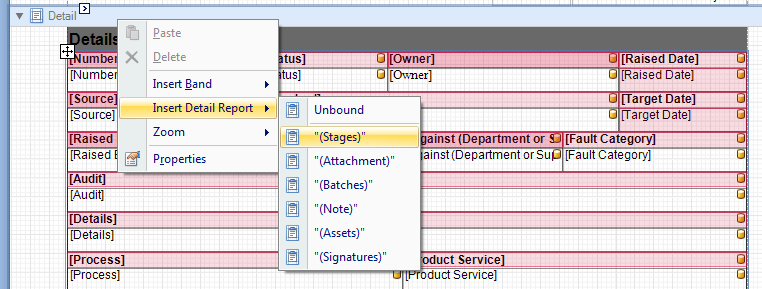

- Right Click the main "Detail" band and hover over the [Insert Detail Report] menu item.
- Select the ["(Stages)"] option.

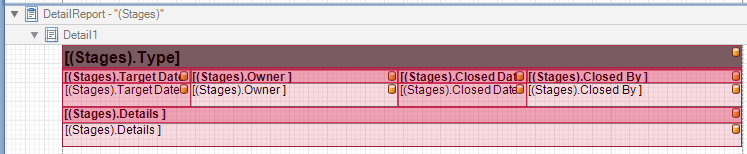

The Stages Detail Report will now be showing beneath the main Detail Report.
Remove any fields that you do not want by selecting them and pressing the [delete] key.
To use additional fields, drag fields on to the Detail Report from the Field List on the left hand side of Report Designer. Important Note: Please ensure you select the fields from the correct "(Stages)" section. If you select a field from the wrong section, the data will not display correctly. For more information, please refer to the article Adding Repeating Field to Ideagen Quality Management Reports.
To insert a Field Label, you need to drag on a "Field Label" Special Control from the ToolBox. So that the control displays the right field name, you need to 'bind' a field to the control. Do this by dragging a field on top of the new control.

Now that you have the Stages Detail Report, you can add another Detail Report below this for Actions. This is achieved with exactly the same method as above:

Right-Click the "Stages" Detail Report band and hover over the [Insert Detail Report] menu item.
Select the ["(Actions)"] option.

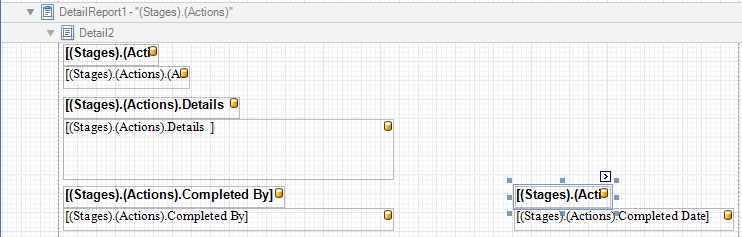

Drag on any required fields from the Actions section in the Field List.

When you preview the report, you should see all stages with all the actions listed below each stage.
Clicking [File], then [Save] to save the report so that you can use this report again when printing.
